Conveyor Bearing

  • non-powered dustproof yellow cover roller end cover plug plastic seat catalog index sprockets end caps bearing for conveyor roller
  • non-powered dustproof yellow cover roller end cover plug plastic seat catalog index sprockets end caps bearing for conveyor roller
  • non-powered dustproof yellow cover roller end cover plug plastic seat catalog index sprockets end caps bearing for conveyor roller
  • non-powered dustproof yellow cover roller end cover plug plastic seat catalog index sprockets end caps bearing for conveyor roller
  • non-powered dustproof yellow cover roller end cover plug plastic seat catalog index sprockets end caps bearing for conveyor roller
  • non-powered dustproof yellow cover roller end cover plug plastic seat catalog index sprockets end caps bearing for conveyor roller
non-powered dustproof yellow cover roller end cover plug plastic seat catalog index sprockets end caps bearing for conveyor rollernon-powered dustproof yellow cover roller end cover plug plastic seat catalog index sprockets end caps bearing for conveyor rollernon-powered dustproof yellow cover roller end cover plug plastic seat catalog index sprockets end caps bearing for conveyor rollernon-powered dustproof yellow cover roller end cover plug plastic seat catalog index sprockets end caps bearing for conveyor rollernon-powered dustproof yellow cover roller end cover plug plastic seat catalog index sprockets end caps bearing for conveyor rollernon-powered dustproof yellow cover roller end cover plug plastic seat catalog index sprockets end caps bearing for conveyor roller

non-powered dustproof yellow cover roller end cover plug plastic seat catalog index sprockets end caps bearing for conveyor roller

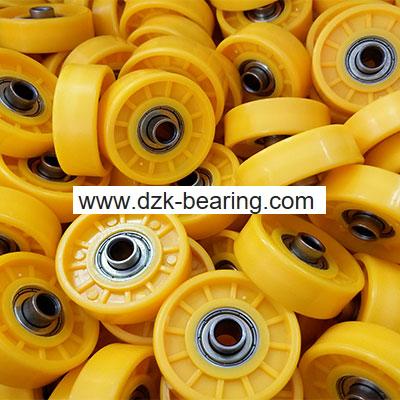

  • Name: End Cap Conveyor Roller Bearings
  • Bearing:6204/6205/6305/6306/6307/6308 plastic bearing housing
  • type:conveyor roller end cap bearing
  • condition:end cap of belt wheel roller
  • Product description: non-powered dustproof yellow cover roller end cover plug plastic seat catalog index sprockets end caps bearing for conveyor roller
  • INQUIRY

plastic sprockets end cap bearing for conveyor roller




yellow/blue/grey color pom with bearing inside plastic skate wheels conveyor bearing

Type
d(mm)
d1(mm)
W(mm)
L(mm)
D(mm)
Weight(g)
Load(kg)
DZKGA-02A
8.2
11.8
16
18
38
26
35
DZKGA-02
8.2
11.8
16
18
48
30
40

Material: 608 Bearing + ABS



Pressed Steel Skate Wheel Conveyor Bearing Drawing And Size:


Conveyor Skate Wheel
Model Dimension (mm) Type
D d L W
DZK 38-01 38 6.2 25 13 1
DZK 38-02 38 6.5 25 13 1
DZK 40-01 40 6.2 25 20 1
DZK 48-01 48 8.2 20 15.8 2
DZK 48-02 48 8.2 24 15.8 2
DZK 48-03 48 8.2 20 16 1
DZK 48-04 48 8.2 24 16 1
DZK 48-05 48 8.2 25 16 1
DZK 48-06 48 6.5 20 16 1
DZK 48-07 48 6.5 22.2 16 1
DZK 49-01 49.2 6.5 20 16 1
DZK 49-02 49.2 6.5 22.2 14.5 1
DZK 49-03 49.2 8.2 20 16 1
DZK 49-05 49.2 8.2 25 16 1
DZK 49-06 49.2 8.2 20 15.8 2
DZK 49-07 49.2 8.2 24 15.8 2
DZK 49-09 49.2 8.2 24 16 1
DZK 50-01 50 8.1 30 25 2
DZK 50-02 50 10.2 20.2 15.5 2
DZK 50-03 50 8.2 20 16 2
DZK 50-04 50 8.2 24 16 2

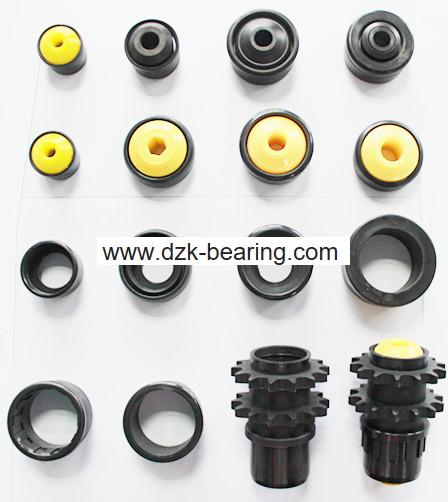

other kinds of skate wheel like bearing inside or hexagonal etc.

Model Photo D D1 D3 d t H H1 H2
DZK 2508-0.8
25 23.4 22 8.2 0.8 14.8 10.8 4
DZK 3812-1.2
38 35.6 28 12.1 1.2 17 13 4
DZK 5012-1.2
50 47.6 28 12.1 1.2 19 15 4
DZK 5012-1.5
50 47
28 12.1 1.5 19 15 4
DZK 5015-1.5
50 47 32 15.1 1.5 20 15 5
DZK 5015-2.0
50 46 32 15.1 2 20 15 5
DZK 6012-1.2
60 57.6 28 12.1 1.2 19 14.5 4.5
DZK 6012-1.5
60 57 28 12.1 1.5 19 14.5 4.5
DZK 6015-2.0
60 56 32 15.1 2 22 18 4
DZK 6015-2.5
58 55 32 15.1 2.5 22 18 4
DZK 7620-2.0
76 72 47 20.1 2 26 22 4
DZK 7620-2.5
76 71 47 20.1 2.5 26 22 4
DZK 8920-3.0
89 83 47 20.1 3 28 24 4
DZK 5011-2.0 HEX
50 46 32 11.1 2 20 16 4
